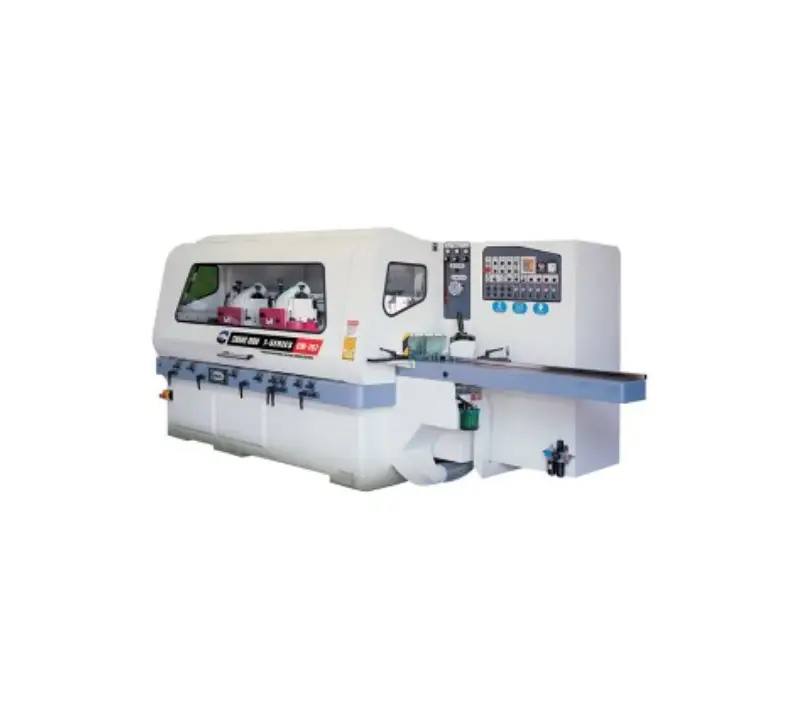

Four Side Moulder

This 4 side moulder is design by BSY Group, The infeed table is coated by harden chrome, the main structure is made from cast iron, so the frame is rigid. The infeed rolls is coated by harden chrome, the outlet roller is coated by polyurethane. It lets you handle moulding job with greater efficiency and safety.

Quotation Status 0 items


Woodworking machinery: Four side Moulder

CODE DL4006
Max. Width finished stock: 230mm
Max. Height finished stock: 125mm
Spindles: 6PCS
Spindle speed-belted: 6000rpm
Max. Cutting circle horizontal: 200mm
Spindle diameter: 40/50mm
Min. Cutting circle horizontal: 125mm
Min. /Max. Cutting circle (vertical): 110-200mm
Feed speed range-electronically variable: 5-60m/min
Adjustment range for bed plate and guide: 10mm


Axial movement for horizontal spindles: 22mm
Axial movement for vertical spindles: 22mm
Feed rolls diameter: 140mm
Max. Pneumatic pressure: 6bar
Entrance table length: 2m
Min. Stock length(with grooved bed plate): 228m
*Cardan drive system


*Receding chipbreaker in front of top spindle
*Upper and lower driven feedrolls at the entrance
*Bed plates exchangeable and adjustable to tool
*Central panel with contactors thermics protections
*Automatic oil pump
*Full sound and safety enclosure
