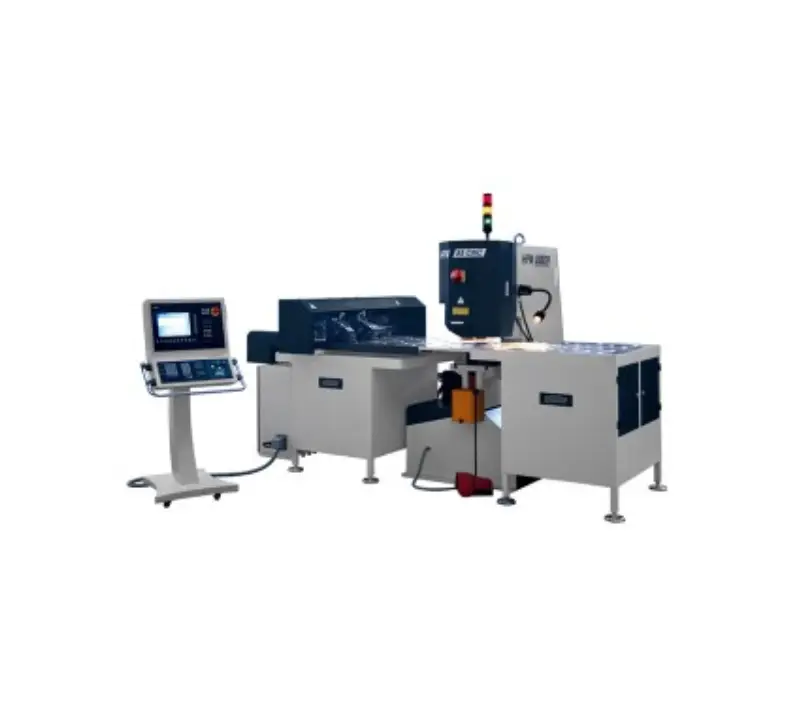

STANDARD EQUIPMENT SPECIFICATIONS • Punch and Die Ø 22* – Ø 26** • Punch Holder • Working Light • Mobile CNC Control Panel • Dividable Separate Table • Material Holder with Hydraulic Clamps • C-Spanner • User’s Manual Book Details SPECIAL EQUIPMENT With the punching tool, holes and punches up to Ø 57 mm (in 10* – 12** mm thickness) can be made easily and efficiently. The punches and dies are interchangeable and easy to change. Special tools and punches are available upon request. • Table sizes 3050 x 500 mm • On X and Y axis max. movement X:1600,Y:600 mm • Max. carriage weight 250 kg. • Material thickness 2 – 25 mm ( between ) • Positioning precision 0.1 mm • On one axis max. movement speed of material holder 24 m/min • One two axis max. movement speed of material holder 30 m/min • Adjustable table clamps according to material thickness • Min. distance on sides: 45 mm • Free software • Manual punching (MDI) • You can enter and record the program (CAM) • Programming with entering technical figures
