Tornado – Electric, Water-Cooled Diamond Tile Saws02Tornado

Tornado – Electric, Water-Cooled Diamond Tile Saws

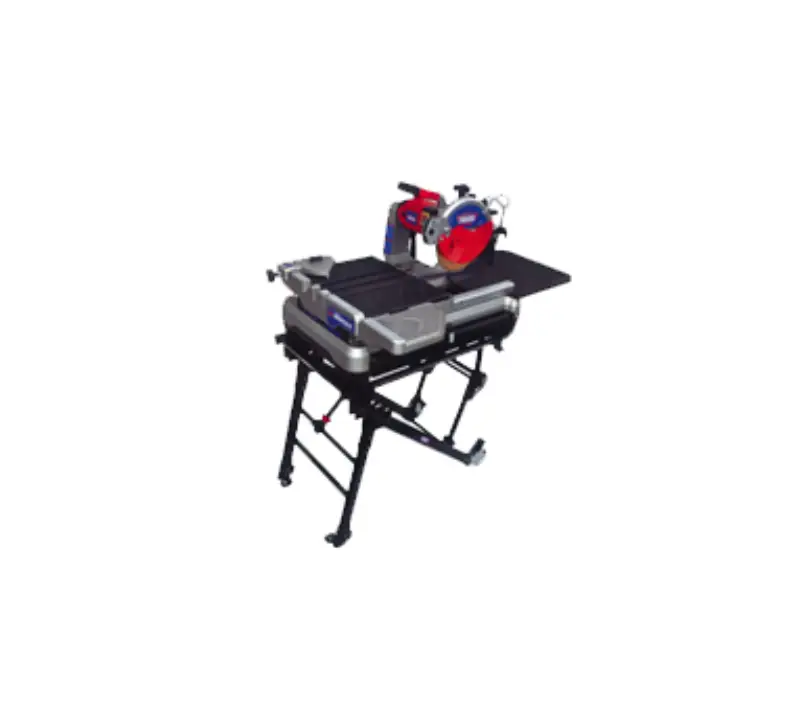

The “TORNADO” is an electric machine with a suspended head, sliding support table, a height adjustable 250 mm diamond disc and pliable support trolley. This unusual structural design allows generous cutting dimensions, (max cutting length 70 cm) despite its compact. size

Quotation Status 0 items

Details

The heart of the machine is the engine which, thanks to its 1800 watt power and high rotation speed, is able to tackle different stone materials from delicate ceramics to gres porcelain, marble and granite up to 9 cm without any problems.
The head, which includes the engine unit, can be adjusted micro metrically to cut a Jolly (45°) or chamfer (22.5°).
The positional lights on the console control allow simple and precise regulation.



The complete structure includes the frame; engine support arm and a sliding support table which is made from an aluminium pressure die casting compound that is light and ensures maximum rigidity and resistance to corrosion.
The surface of the sliding table is protected by a resistant rubber coating which is immune to abrasion and ensures stable support and reduced vibration during the cutting process. The adjustable geometric square keeps the material in the correct position and helps during repetitive cutting.
The laser marker shows the correct cutting position and highlights the cutting line perfectly. Also the machine has a dedicated light to give maximum visibility in low light conditions.



To replace the diamond blade, when you open the protection case you will find the fixed nut that can be taken off by locking engine spindle using a special switch and operates with just one key.
The revolutionary support frame, thanks to its particular structure and rubber wheels including brakes, can be folded without being separated from the machine which helps movement during cutting operation and transportation.
